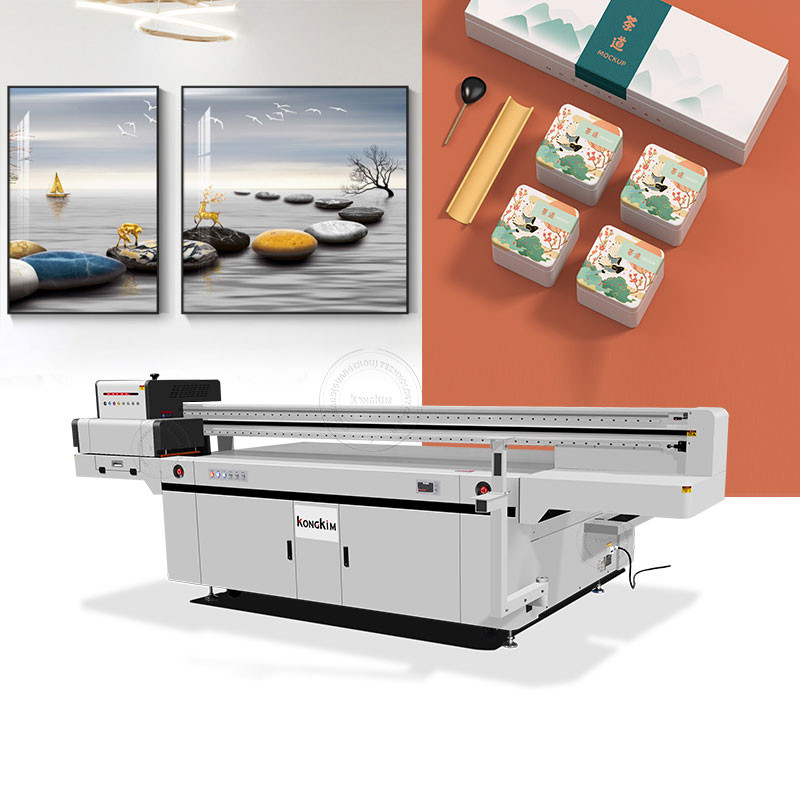

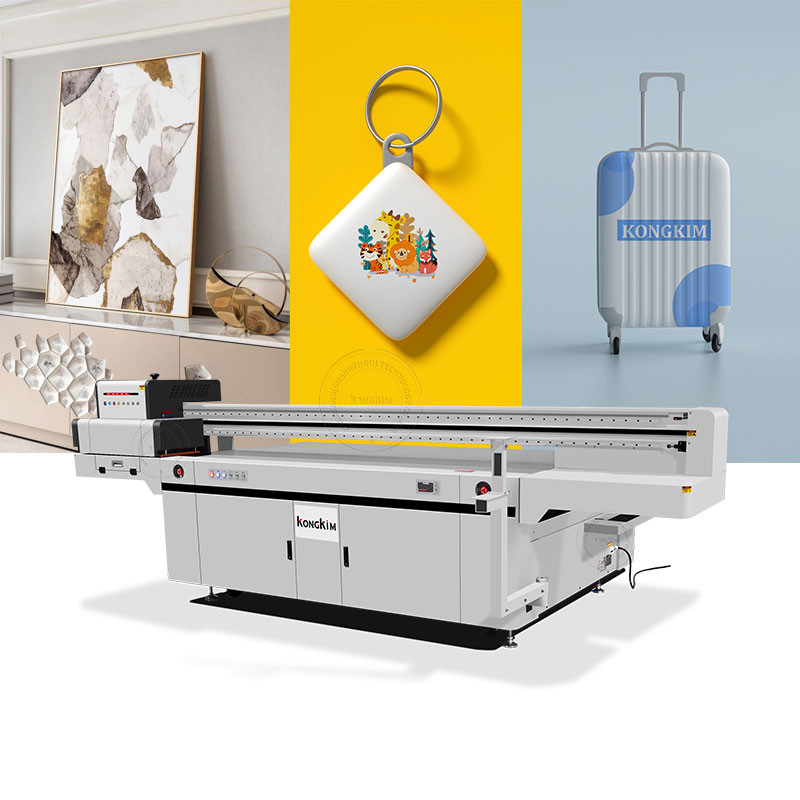

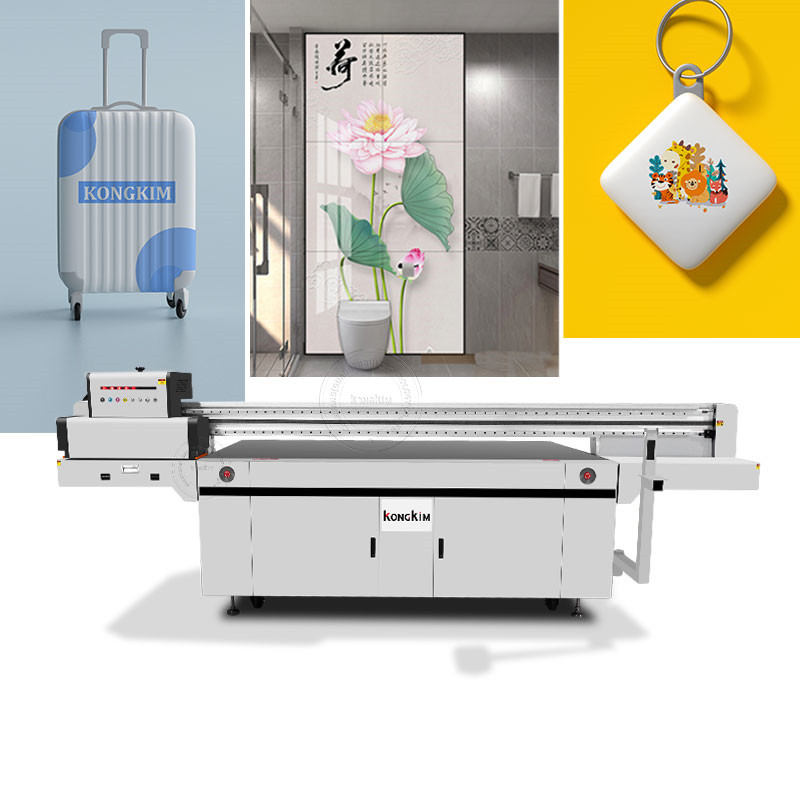

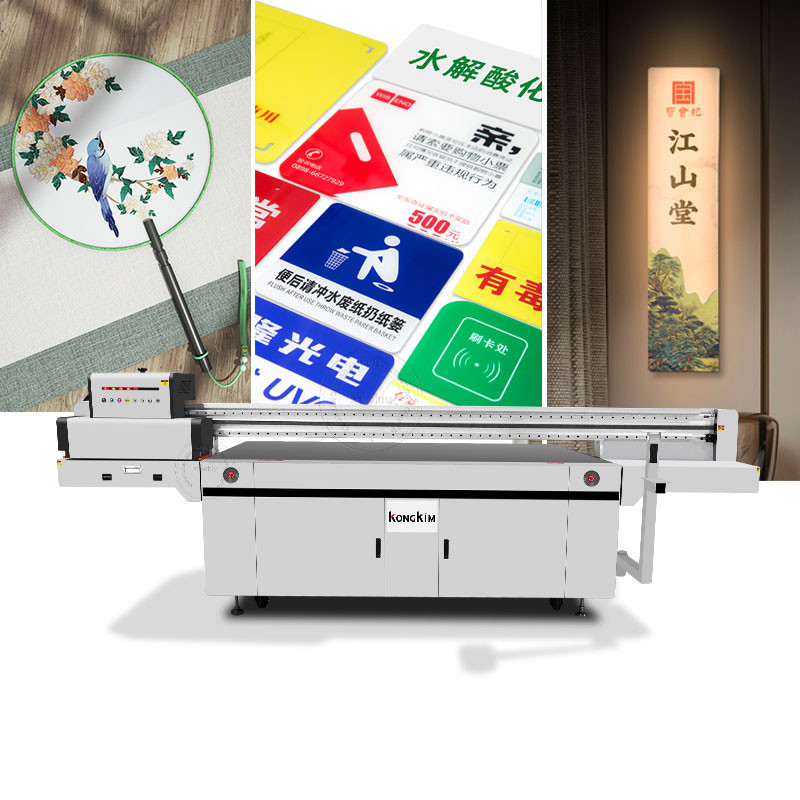

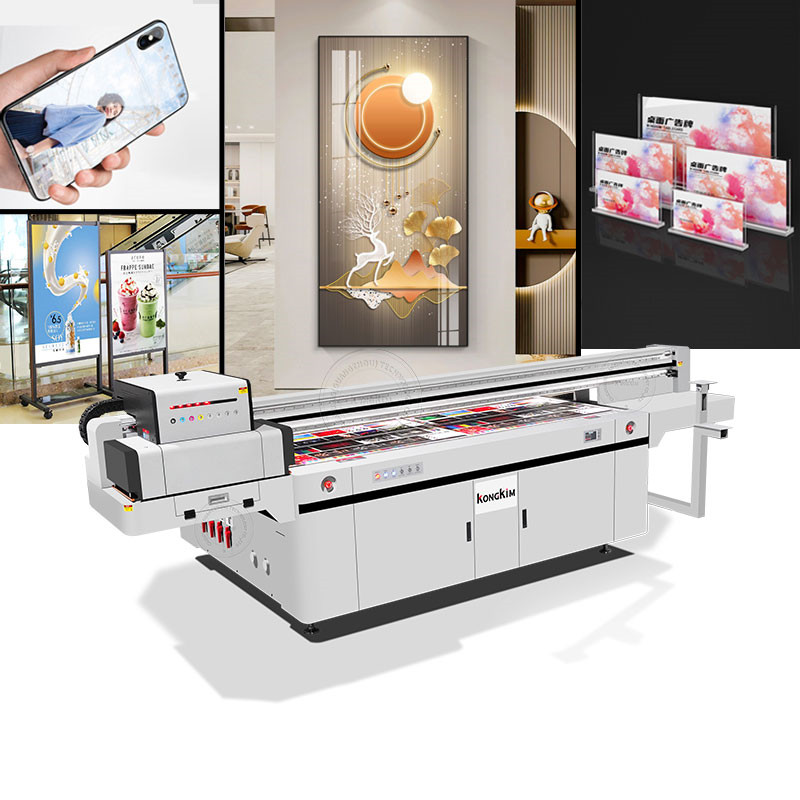

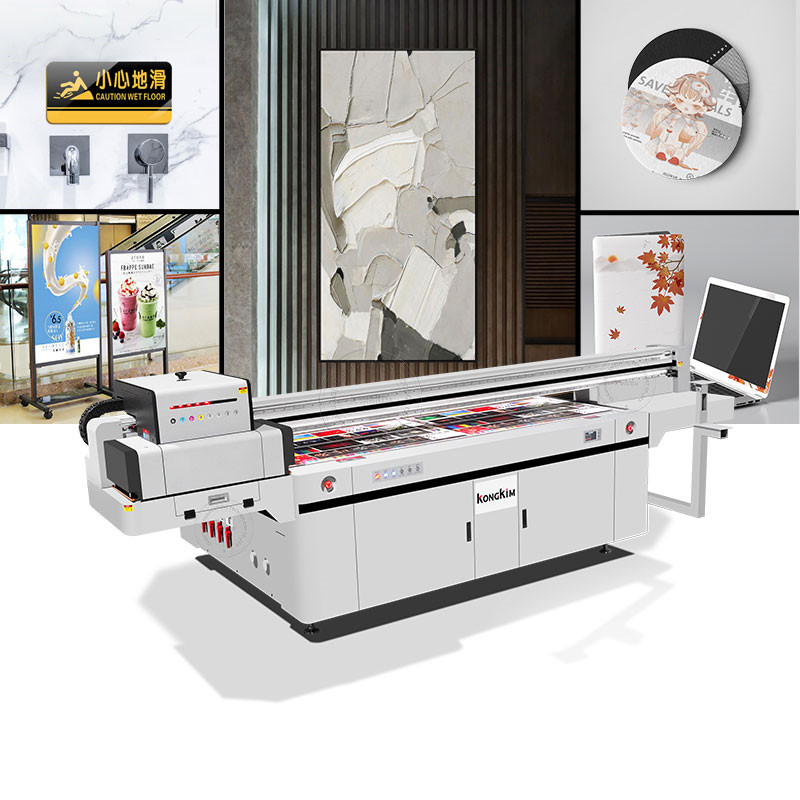

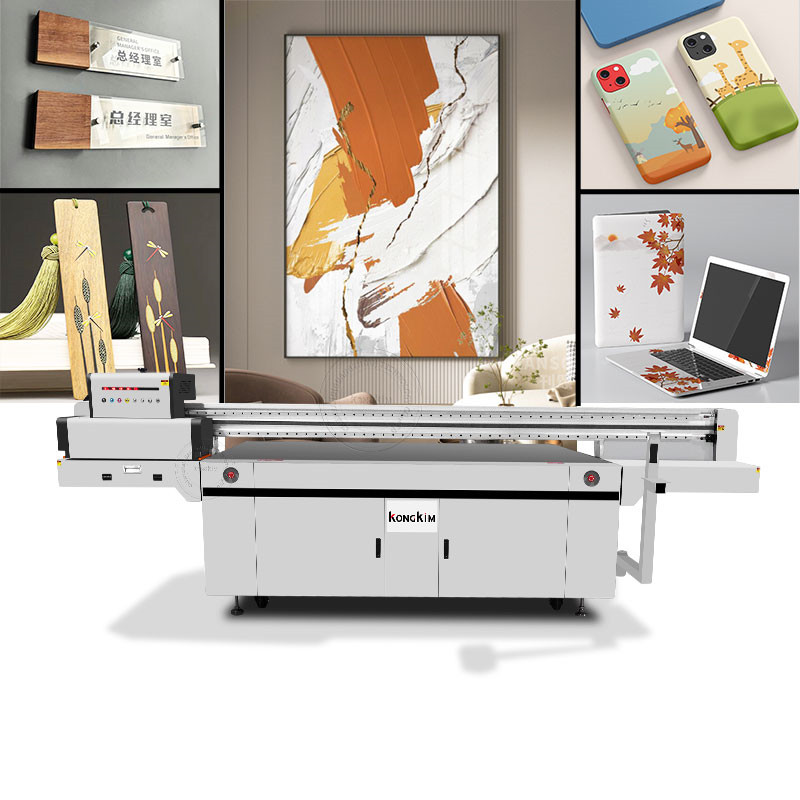

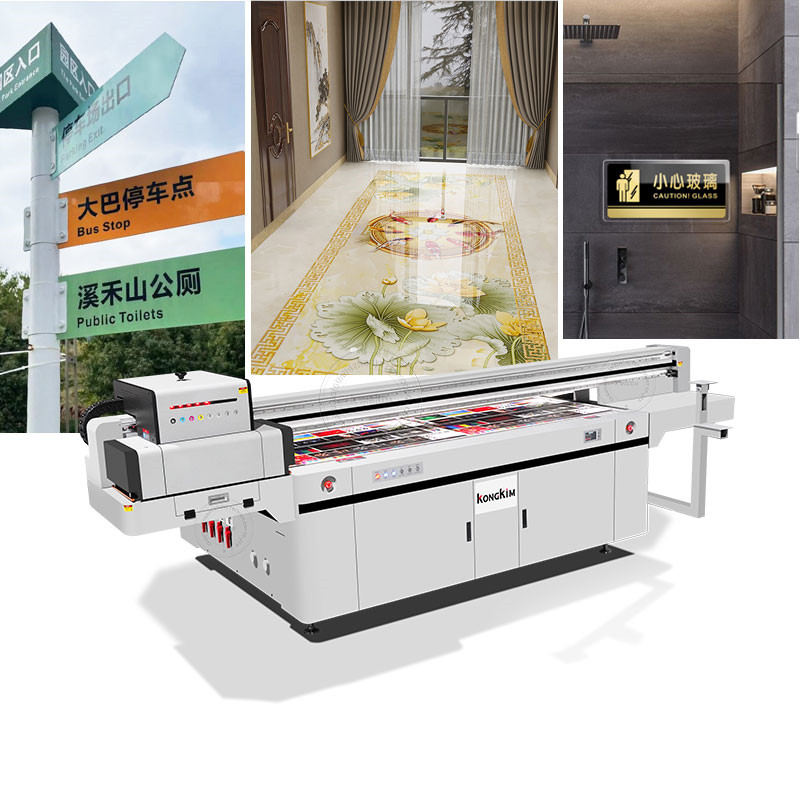

Industrial large format flatbed uv printer with Ricoh G5 G6 printheads KK-2513
2~16 RICOH GEN6 print heads
[W+C+ V] multiple print-heads combination for choice
UV PRINTER ESSENTIAL SKILLS:
MULTILAYER PRINTIN G
3D RELIEF EFFECT
PVC board, KT board;
Acrylic, Metal board;
Aluminum-Plastic board;
Phone-Case, Wood;
Glass, Tile, Stone;
..
And other flat materials
CARRIAGE
Maximum print thickness of 10cm 750 servo motor runs smoothly Negative pressure smooth ink supply
LED-UV LAMP
Equipped with L G's ultra long life L .ED-UV lamp Dry immediately after printing
SOLID MATERIAL
Fine milling integral beam Double THK linear silent guide Double 32mm imported Y-axis screw rods
PRINTING PLATFORM
43 support points for printing platform without blind area Independent 4 zone negative pressure control
| Printer Model | KK-2513U | Printing Size | 2500mm x 1300mm | |
| Print Head | RICOH GEN6 | Resolution | Max 720x1800dpi | |
| Ink Type | GEN6 * special uv ink | Color | CMYK Lc Lm +W+V * Multiple color combinations are available | |
| Printing Speed | Print-Head |
4 Rows of RICOH G6 print-heads |
||
| Print Mode |
4PASS |
6PASS |
8PASS |
|
| All Color Mode |
90 m²/h |
60 m²/h |
45 m²/h |
|
| W+C [V] Mode |
45 m²/h |
31 m²/h |
24 m²/h |
|
| Print Material | KT board, PVC board, acrylic, metal board, aluminum plastic board, foam board, phone case … | |||
| Ink Suply | Independent secondary ink carriage constanttemperature continuous ink suppply | |||
| RIP Software | MainTop RIP V6.1 UV | |||
| Motor system | High power AC servo computer [X/Y/Z axis] | |||
| Control System | BYHX board, the most stable print control system in China | |||
| Curing System | LG LED-UV lamp | Printing Platform | Zone 4 vacuum platform | |
| Negative Pressure System | White / Color independent negative pressure system | Print Thickness | Max 100mm | |
| Print Port | USB 3.0 / USB 2.0 | Power Supply | AC 220V / 110V 50/60HZ | |
| Machine Size /Weight [NW] | 4100 x 2060 x 1400mm1000KG | Package size /Weignt [GW] | 4450 x 2150 x 1700mm1200KG | |
-
